Description

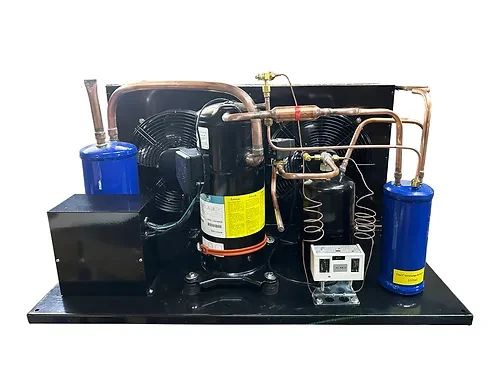

Assembled in USA. Unit equipped with Invotech YM49E3G-Q100 Scroll Compressor.

38-5/8”L X 28-5/8”W X 22-1/8”H

Description

HP:3HP

Volts:208/230 VAC

Phase:1 PH

Refrigerant:R404a

BTU:20,600 BTU @ 20°F

Nominal Performance

Capacity 3,227 / – Watts

20,600 / – BTU/Hr @ 20F

Power Input 3,108/ – Watts

Locked Rotor Amps 76.00 / – Amps

Max Continuous Current – / – Amps

Rated Load Amps 15.30 / – Amps

Discharge Tube: 1/2″

Suction Tube:7/8″

Testing Conditions

Condensing Temperature 129.9 °F

Evaporating Temperature 19.9 / – °F

Liquid Temperature 115.0 °F

Return Gas Temperature 95.0 °F

Ambient Temperature 95.0 °F

Application

Evaporating Temp. Range MBP @ -9.9° F to 34.0° F

Heat Pump -° F to -° F

Refrigerant R404A

Refrigerant Flow Control Capillary Tube

Compressor Cooling Fan

Compressor and Motor data

Compressor Type Scroll

Oil Type : Polyolester Oil
